Current Project Notes

volt pro charger graphs

graphs of several charging profiles on the volt pro, and other chargers

Take Me There!

Notes Blog!

current updates on assorted projects & volt pro updates!!

Take Me There!

Video Notes

this page contains project and other information relates to specific videos from YouTube :^)

this section will be changing soon - formatting data on a website takes trial & error!

CLICK EACH SECTION TO EXPAND

  • REPAIR VLOG: F3 front shock SWAP!

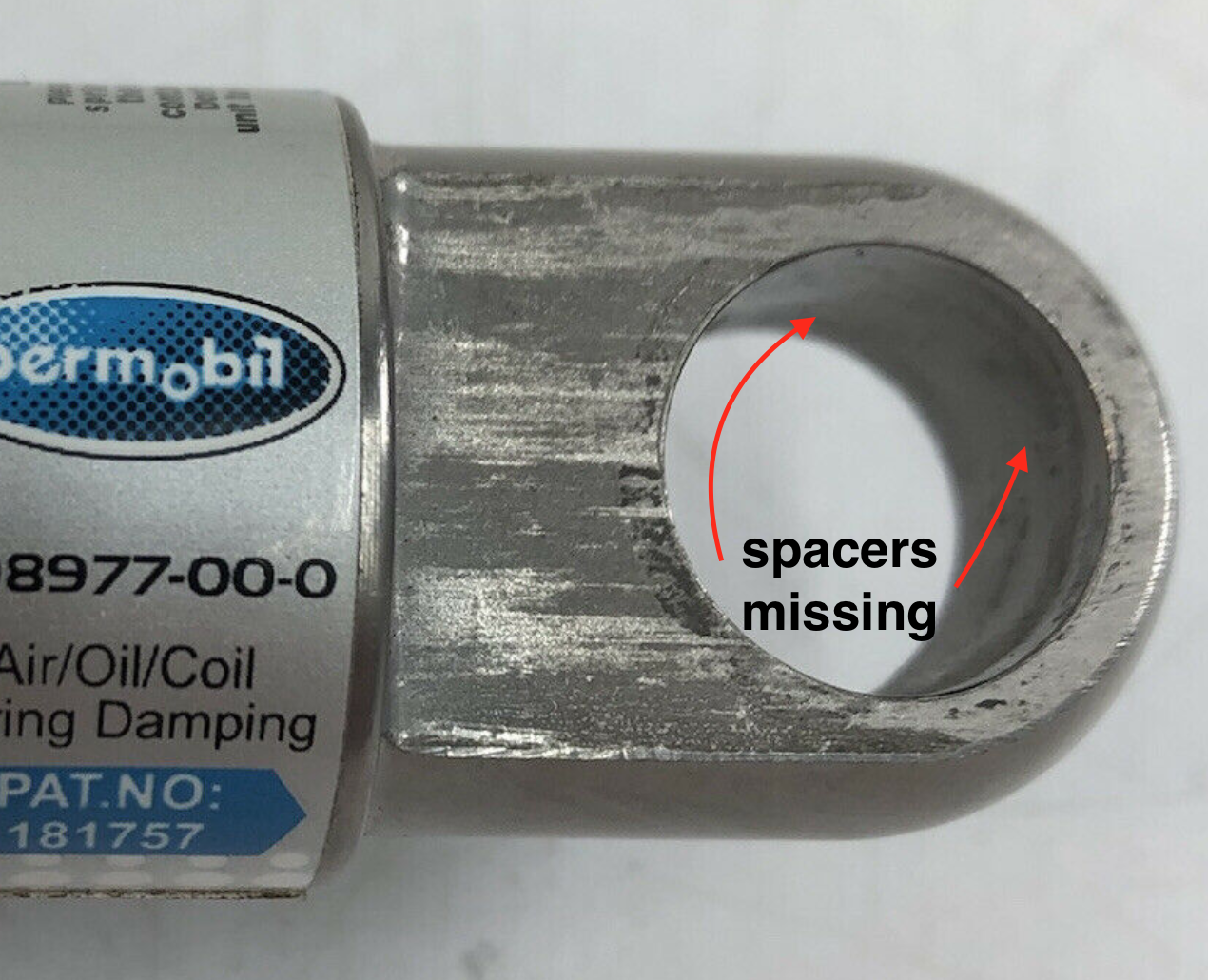

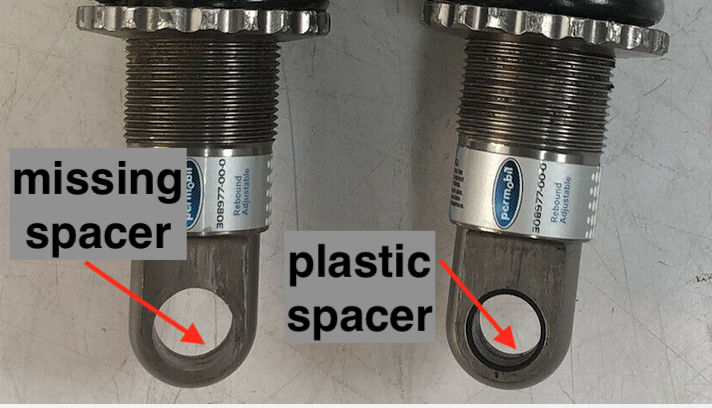

    When buying C500 shocks - make sure they BOTH have the thin black plastic bushings INSIDE the mounting holes on each end of the shocks!
    (first photo)
    these are necessary to install on your F3!
    they are a press-in friction fit

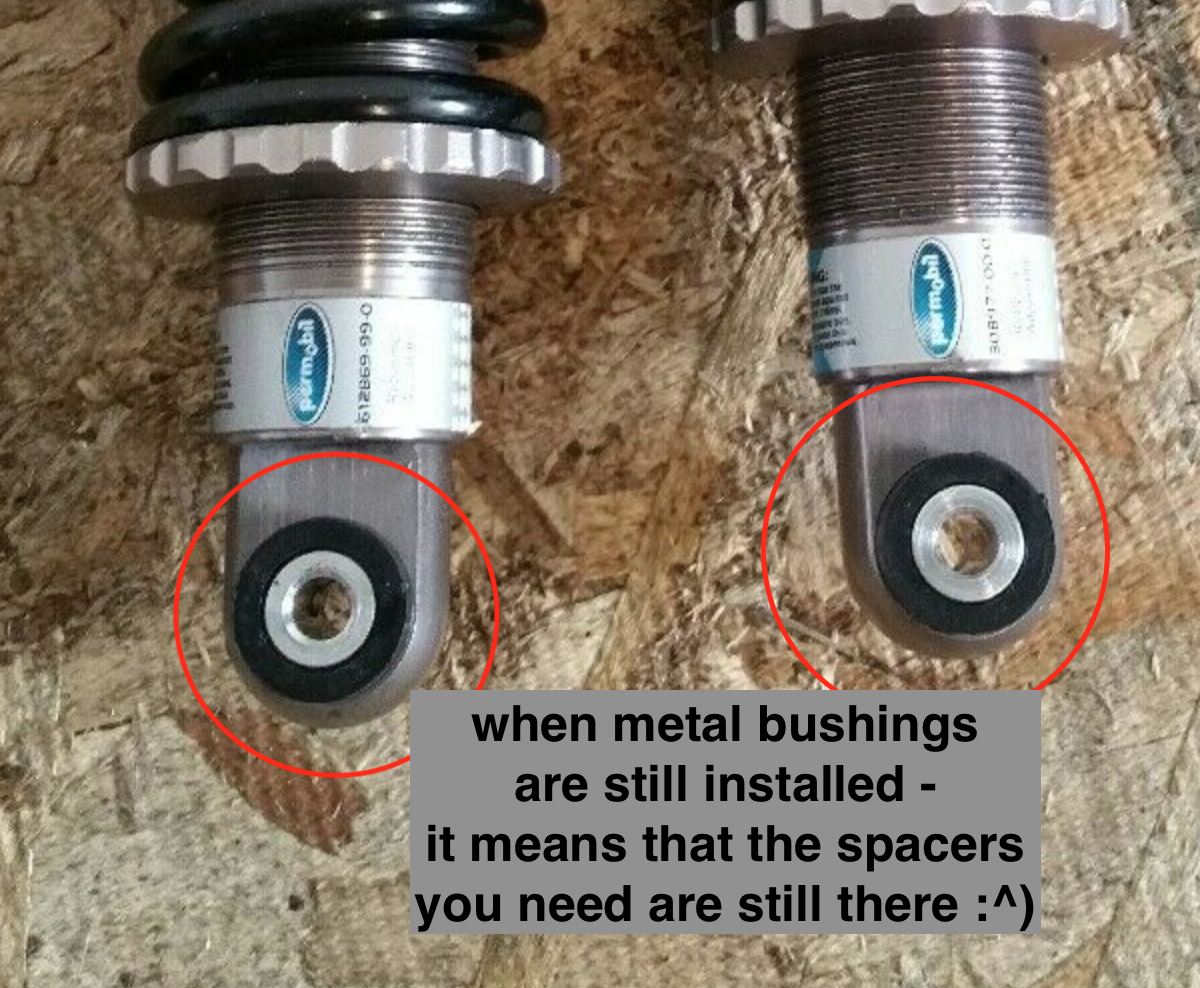

    if the shocks still have the silver metal bushings installed, you're good to go! (second photo)
    the larger external black spacers are irrelevant :^)
    [click photos to enlarge]

  • VLOG 575: Dynamic Controls interface Board

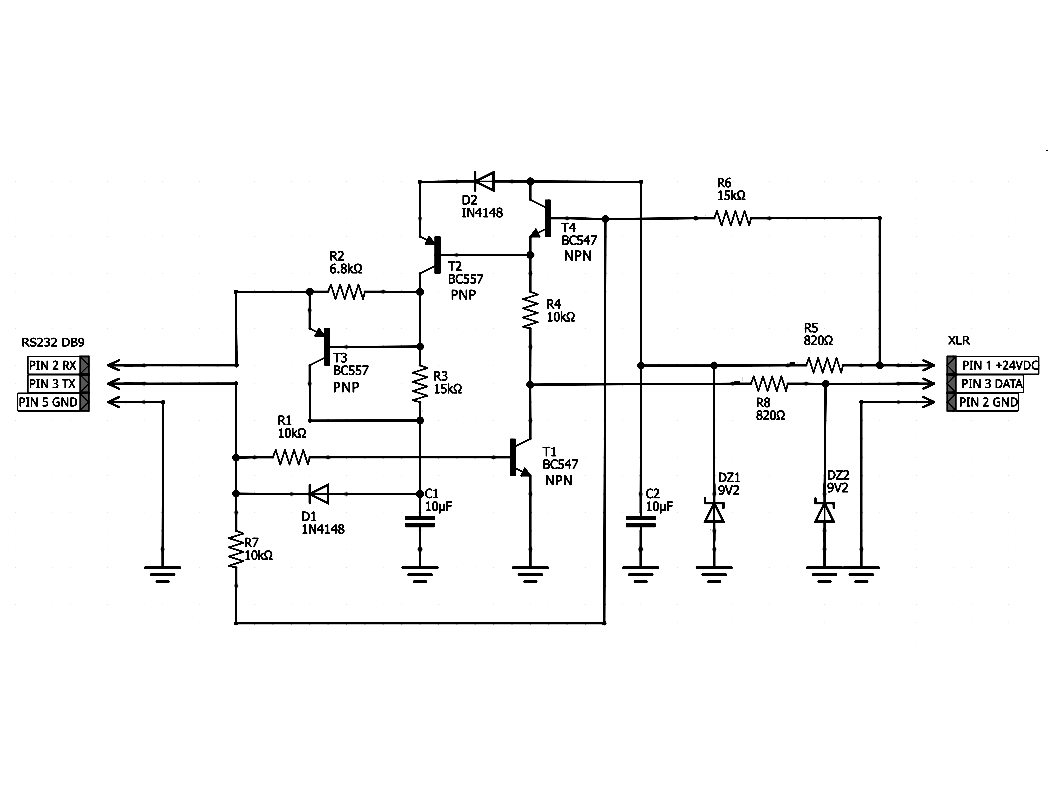

    In this video, we use a little interface board that i built a few years back.. here's some information and schematics for building your own Dynamic Programming interface!
  • VLOG 570: is an M3 the chair for me?
    In this video, we take a look at a 2017 Permobil M3 - take the wheels off and check out the suspension setup it has. also work on adjusting the seat pan dimensions etc.
